DESCRIPTION

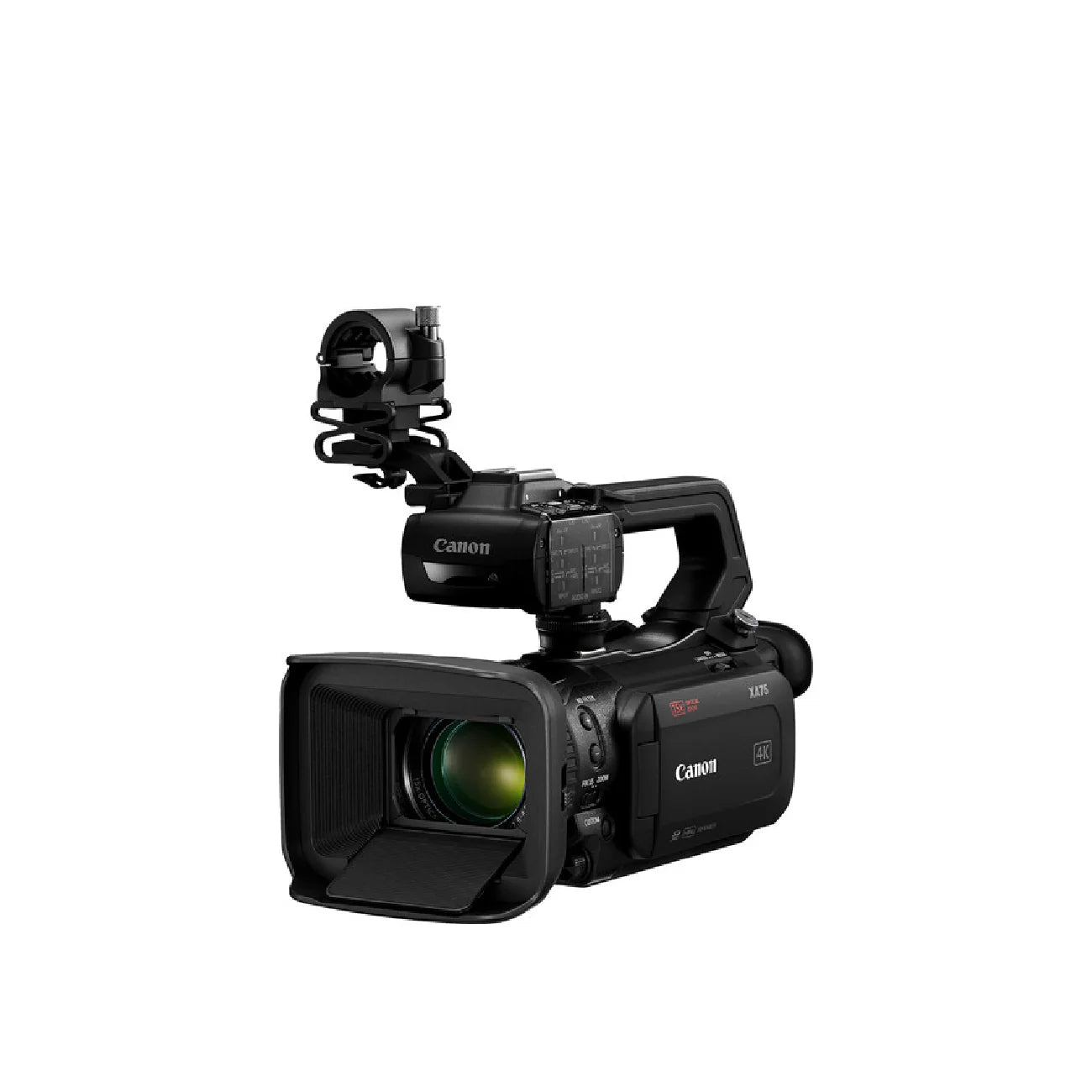

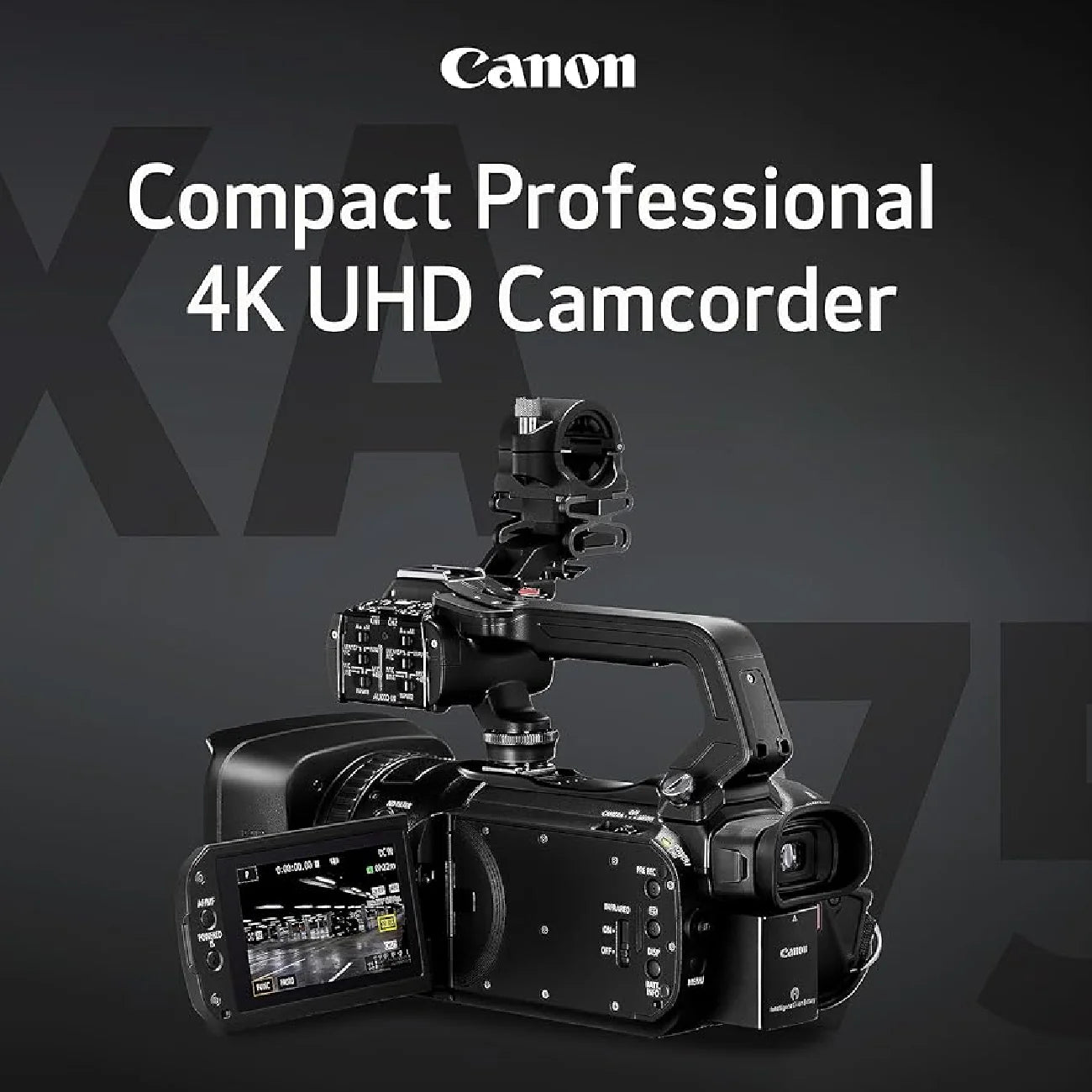

Canon XA75 UHD 4K30 Camcorder with Dual-Pixel Autofocus

The Canon XA75 Professional UHD 4K Camcorder is a compact, lightweight camera featuring UHD 4K capture, a 1" CMOS sensor, two XLR audio inputs, and one each mini-HDMI and BNC 3G-SDI output, which fits right into the ENG category for documentary or journalism-style productions. Updated from its XA55 predecessor, this model features a larger 3.5mm LCD capacitive touchscreen display, a higher resolution tiltable 0.36" OLED EVF, OSD metadata recording, and fast USB Type-C video-only output with UVC support for livestreaming to a computer.

Key Features
  • 1" CMOS Sensor, DIG!C DV 6 Processor
  • Up to UHD 4K30 Video Recording
  • Mini-HDMI and 3G-SDI Outputs
  • Integrated 15x Optical Zoom Lens
  • Dual XLR and Mic/Line Audio Input
  • USB Type-C Output with UVC Support
  • 5-Axis Optical Image Stabilization
  • Dual-Pixel CMOS Autofocus Feature

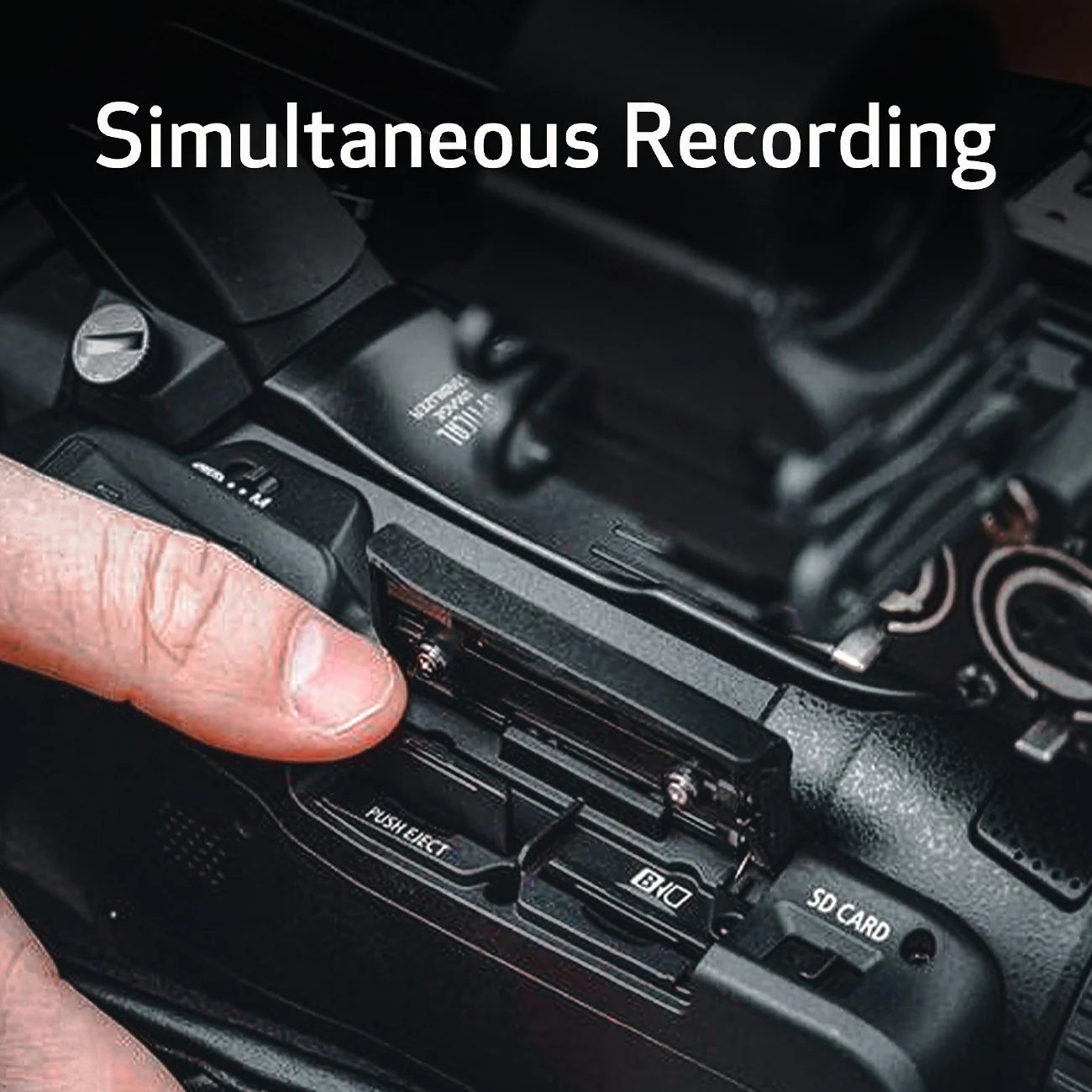

  • Dual SD Relay and Simultaneous Recording
  • 3.5" Touchscreen LCD, Tiltable OLED EVF



Product Specifications

Category Details
Image Sensor 1"-Type CMOS
Sensor Resolution Actual: 13.4 Megapixel (4268 x 3148)
Effective: 8.29 Megapixel (3840 x 2160)
Image Stabilization Optical in Integrated Lens
Digital
Internal Recording MP4/H.264 4:2:0 8-Bit
3840 x 2160 at 23.98/24.00/29.97 fps
1920 x 1080p at 23.98/24.00/29.97/59.94 fps [35 to 45 Mb/s]
1280 x 720 at 59.94 fps [8 Mb/s]
XF-AVC 4:2:0 8-Bit
3840 x 2160 at 23.98/24.00/29.97 fps
1920 x 1080p at 23.98/24.00/29.97/59.94 fps
Video Output 4:2:2 8-Bit via SDI/BNC / HDMI
1920 x 1080p at 23.98/29.97 fps
1920 x 1080i at 59.94 fps
1280 x 720 at 59.94 fps
4:2:2 10-Bit via SDI/BNC / HDMI
1920 x 1080p at 23.98/59.94/29.97 fps
1920 x 1080i at 59.94 fps
1280 x 720 at 59.94 fps
Media/Memory Card Slot Dual Slot: SD/SDHC/SDXC (UHS-I)
Video I/O 1x Mini-HDMI 2.0 Output
1x BNC (3G-SDI) Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Mobile App Compatible No
Battery Canon BP-8 Series
Shoe Mount 1x Cold Shoe
Tripod Mount 1/4"-20 Female
Dimensions (W x H x D) 8.4 x 4.3 x 3.6" / 21.3 x 10.9 x 9.1 cm
Weight 2.2 lb / 998 g (Body Only)
3.2 lb / 1451 g (With Handle, Recording Media, Battery)
Packaging Info
Package Weight 5.85 lb
Box Dimensions (LxWxH) 14.2 x 12 x 9"

Warranty: 1 Year Warranty | Human Error Not Covered
