Product Description
Key Features
-
- Close-Up Filming Indoors or Outside
- Ultra-Wide 4K100p Stabilized Video
- Propeller Guards for Safe Flying
- Goggles 2 with 1080p Full HD Resolution
- DJI RC Motion 2 Controller Included
- Up to 6.2-Mile Video Transmission Range
- Downward Sensing Obstacle Avoidance
- Emergency Brake & RTH Safety Features
- Up to 18 Minutes of Flight Time
- 3 Speed Modes from 17.9 to 60.4 mph

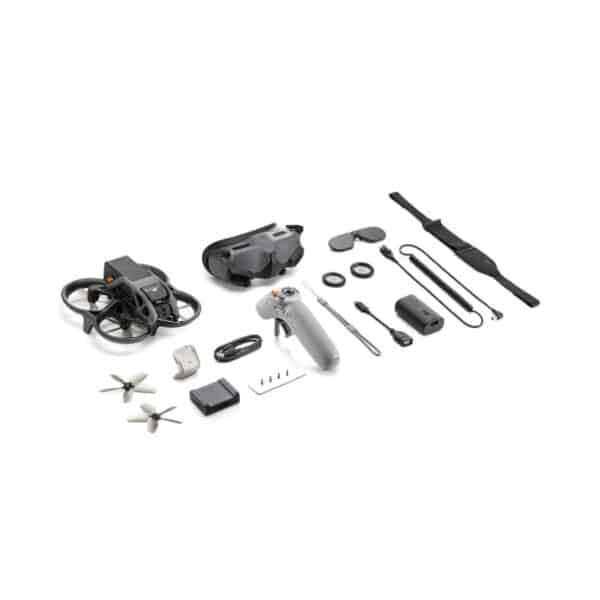

Safely film steady, ultra-wide 4K stabilized video indoors or outside, in and around objects, with the DJI Avata Pro-View Combo with RC Motion 2. Sporting what some call a “cinewhoop” design, the Avata comes in a palm-sized form factor with all four propellers protected with attached guards. This allows for close-up filming indoors, near people, and through small openings without risking damage or injury to people and property. If the Avata does come in contact, it can just bounce off and keep flying.

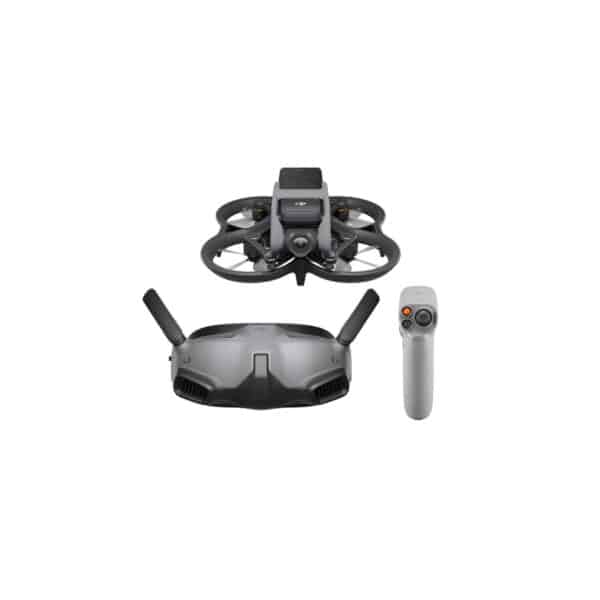

With the Pro View Combo, piloting the DJI Avata is an immersive and intuitive experience with the included Goggles 2 and RC Motion 2 Controller. The Goggles 2 are compact, lightweight FPV goggles that utilize dual 1080p micro OLED screens to provide a clear, full-screen live feed from the drone’s point of view. The RC Motion 2 Controller delivers a unique and natural method of flying, with a combination of motion-sensing hand movements and an integrated flight joystick.
Goggles 2
The ultra-wide 155° FOV of the Avata makes for an exhilarating experience when first-person piloting with the DJI Goggles 2. The goggles receive a steady transmission via the DJI O3+ system over dual-band Wi-Fi 5 (802.11ac) and can run for up to two hours per charge. The live feed you view is clear and lifelike regardless of your eye type, thanks to an adjustable and lockable diopter that ranges from +2.0 to -8.0D. When you’re not flying, the foldable antennas make the compact goggles even easier to store and transport.
Â
RC Motion 2
This single-handed controller lets even beginner pilots intuitively operate the Avata through a combination of motion-sensing hand movements and an integrated joystick. The accelerator trigger moves the Avata forward, but it also gives you the ability to fly in reverse if needed. In addition to piloting, you can remotely control Avata camera settings using the integrated FN dial. With dual-band 2.4/5.8 GHz transmission from up to 6.2 miles away, your movements are made to match what you see in the Integra goggles for an exhilarating and fluid experience.
Â
Wide-Angle Stabilized Video
The Avata comes equipped with a 48MP 1/1.7″ CMOS sensor, which supports up to 4K video at 100 fps. This footage is shot with an ultra-wide 155° FOV that mimics how we see with our own eyes for a natural and realistic experience. The footage is stabilized in two ways using RockSteady 2.0 EIS and HorizonSteady EIS. RockSteady EIS works to reduce camera shake, while HorizonSteady locks the Avata’s footage to a level horizon.
Â
O3+ Transmission
Utilizing 2T2R omnidirectional antennas, the Avata can feed your controller or compatible FPV goggles with Full HD 1080p video at up to 100 fps, with only a 30 ms latency, and at a 50 Mb/s data transfer rate. The footage is compressed with H.265 to save on storage space when saving videos, and it can be sent from up to 6.2 miles away.
Â
Obstacle Sensing
A downward binocular vision sensor and ToF depth sensor work conjunctively to detect obstacles on the ground during flight. This gives pilots the ability to safely fly low-altitude and indoor flights.
Â
Turtle Mode
The propeller guards usually let the Avata take a bump and keep on flying, but what if the Avata hits hard enough to fall and land on its back like a turtle? Just activate Turtle Mode with a few taps to have the Avata flip itself right-side up and get back to flying.
Â
Virtual Flight App
Designed for Windows, iOS 12.0+, and Android 9.0+, this software lets new and experienced pilots practice flying indoors and outside, honing their skills from a variety of preinstalled simulated scenarios.
Â
Additional Features
-
- Shoot in D-Cinelike mode to allow for advanced color grading during post-production
- Ducted aerodynamic design for up to 18 minutes of flight time
- Three speed modes: Normal (up to 17.9 mph), Sport (up to 31.3 mph), and Manual (up to 60.4 mph)
- Take still JPEG photos at up to 4000 x 3000 resolution
- Capable of withstanding Level 5 winds of up to 24 mph
- microSD slot for optional cards up to 256GB
- Compatible with FPV Remote Controller 2, Goggles V2, FPV Goggles V2, Goggles Integra, DJI RC Motion 2 Controller, and DJI Motion Controller
Specs
Performance
| Maximum Takeoff Weight | 14.5Â oz / 410Â g |
| Maximum Horizontal Speed | 17.9Â mph / 8Â m/s (Normal) 31.3Â mph / 14Â m/s (Sport) 60.4Â mph / 27Â m/s (Manual) |
| Maximum Ascent Speed | 13.4Â mph / 6Â m/s |
| Maximum Descent Speed | 13.4Â mph / 6Â m/s |
| Maximum Wind Resistance | 23.9Â mph / 10.7Â m/s |
| Flight Ceiling | 3.1Â Miles / 5000Â m |
| Maximum Flight Time | 18 Minutes |
| Maximum Hover Time | 18 Minutes |
| Hovering Accuracy | Vision Positioning Vertical: ±0.3′ / 0.1 m Horizontal: ±1.0′ / 0.3 m GNSS Vertical: ±1.6′ / 0.5 m Horizontal: ±4.9′ / 1.5 m |
Â
Camera
| Sensor Type | 1/1.7″-Type CMOS Sensor |
| Sensor Resolution | Effective: 48 Megapixel |
| Focal Length | 2.3mm / 12.7mm (35mm Equivalent) |
| Field of View | 155° |
| Maximum Aperture | f/2.8 |
| Minimum Focus Distance | 2′ / 0.6Â m |
| ISO Sensitivity | 100 to 6400 in Auto Mode 100 to 25,600 in Manual Mode |
| Shutter Speed | 1/8000 to 1/50Â Seconds |
| Video Format | 3840 x 2160p at 50/60 fps (150 Mb/s MP4 via H.265/HEVC) 2704 x 1520p at 50/60/100 fps (150 Mb/s MP4 via H.265/HEVC) 1920 x 1080p at 50/60/100 fps (150 Mb/s MP4 via H.265/HEVC) |
| Broadcast Resolution | None |
| Still Image Support | JPEG (4000 x 3000) |
| Internal Storage | 20 GB |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Photo Modes | Single Shot |
Â
Gimbal
| Number of Axes | 1-Axis (Pitch (Tilt)) |
| Rotation Range | Mechanical Range Pitch (Tilt): 170° (-90 to 75°) Controllable Range Pitch (Tilt): 145° (-80 to 65°) |
| Follow Speed | Tilt: 60°/s |
| Stabilization Accuracy | ±0.01° |
Â
Flight Control System
| GNSS Support | GPS, BeiDou, Galileo |
Â
Vision/Sensing System
| Vision System | Downward |
| Vision System Capabilities | Downward Hovering Range: 1.6 to 65.6′ / 0.5 to 20Â m |
| Operating Environment | Surface with Clear Patterns at >15 lux |
| Required Object Reflectivity | >20% |
Â
Remote Controller / Transmitter
| Operating Frequency | 2.4 GHz 5.8 GHz |
| Maximum Operating Distance | 6.2Â Miles / 10.0Â km |
| Mobile App Compatible | Yes: Android & iOS App Name: DJI Fly Functionality: Remote Control, View Live Feed *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
Â
Flight Battery
| Battery Chemistry | Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO2) |
| Battery Capacity | 2420 mAh / 35.71 Wh |
| Battery Configuration | 4 S / 14.76 V |
| Maximum Charging Power | 17 V |
| Charging Temperature | 41 to 104°F / 5 to 40°C |
| Weight | 5.7Â oz / 162Â g |
Â
General
| Rotor Configuration | 4 |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Diagonal Size | 4.7″ / 120Â mm |
| Overall Dimensions | 7.1 x 3.1 x 7.1″ / 180.0 x 80.0 x 180.0Â mm |
| Weight | 14.5Â oz / 410Â g |
